Kabel

E-YY-J oder -O

Download PDF

Zur Anfrage hinzufügen

Download PDF

Zur Anfrage
Beschreibung
Beschreibung
Design
Technische Daten
Kontakt

PVC/PVC Kupfer Energiekabel

Copper 0,6/1 kV

Energieverteilungskabel in Kraftwerken, Industrieanlagen und Verteilungseinrichtungen sowie in Ortsnetzen. Für die feste Verlegung im Erdreich, in Innenräumen, in Kabelkanälen, im Freien und im Wasser - entsprechend den örtlichen Bauvorschriften - unter starker mechanischer Beanspruchung bei der Verlegung und im Betrieb.

Dieses Produkt hat 39 Option(en)

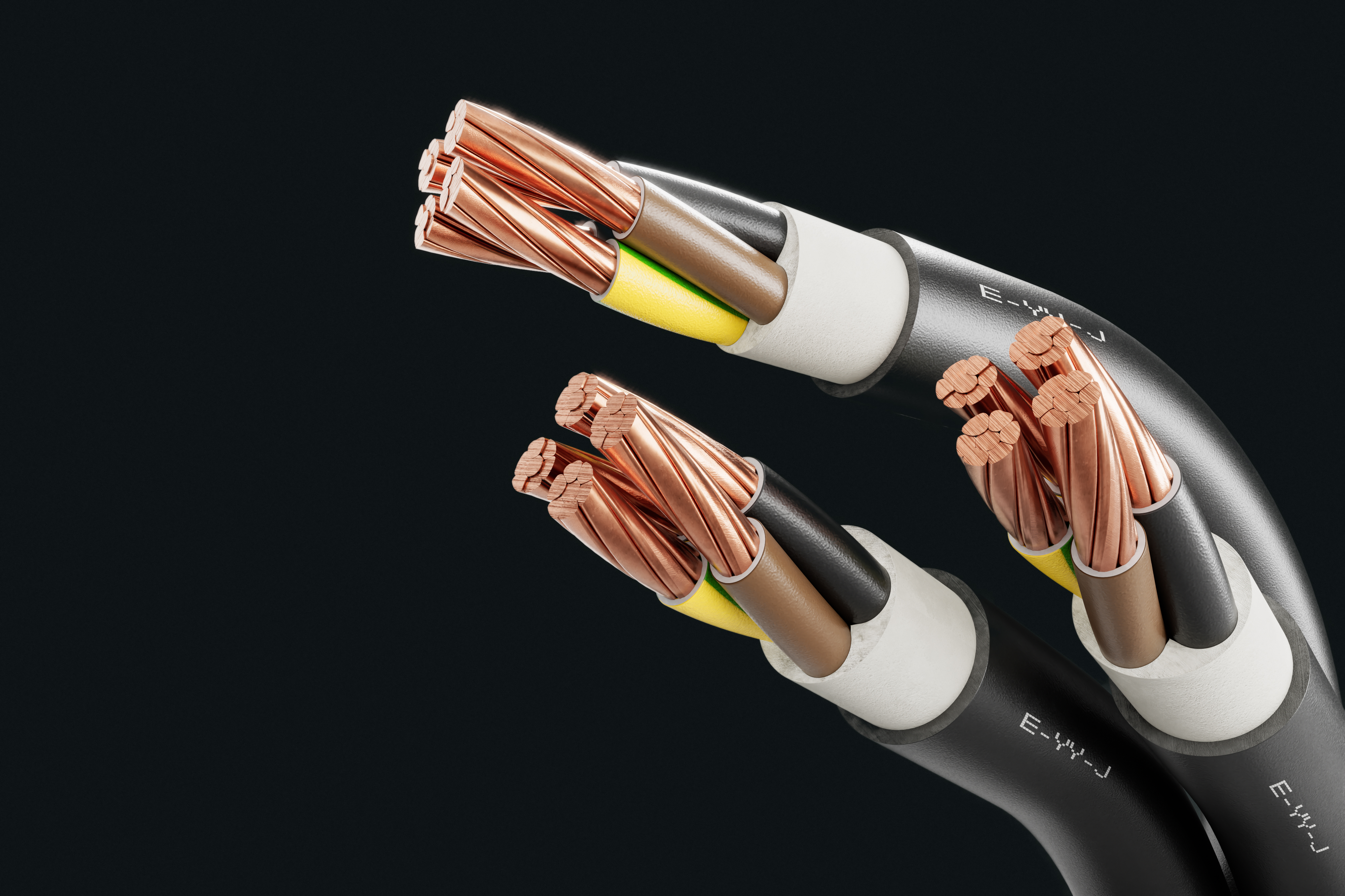

Kabelbild - E-YY-J oder -O
Kabelbild
Kabelbild
Kabelbild
Beschreibung
Beschreibung
Design
Technische Daten
Kontakt

Optionen

Zur Anfrage hinzufügen
Aderanzahl x Nennquerschnitt (mm²)
Max. Leiterwiderstand (Ω/km)
Strombelastbarkeit Erde (A)
Strombelastbarkeit Luft (A)
Außendurchmesser ca. (mm)
Gesamtgewicht ca. (kg/km)
1 x 16 RE
1.15
107
84
10.1
232
1 x 16 RM
1.15
107
84
10.4
239
1 x 25 RM
0.727
138
114
11.9
345
1 x 35 RM
0.524
164
139
13
444
1 x 50 RM
0.387
195
169
14.6
582
1 x 70 RM
0.268
238
213
16.4
789
1 x 95 RM
0.193
286
264
18.5
1060
1 x 120 RM
0.153
325
307
19.8
1293
1 x 150 RM
0.124
365
352
21.7
1578
1 x 185 RM
0.0991
413
406
24.2
1971
1 x 240 RM
0.0754
479
483
27
2540
1 x 300 RM
0.0601
539
552
29.6
3142
1 x 400 RM
0.047
614
646
33.2
3968
1 x 500 RM
0.0366
693
747
37.1
5054
1 x 630 RM
0.0283
740
840
40.9
6401
2 x 1.5 RE
12.1
32
20
10
147
2 x 2.5 RE
7.41
42
27
10.7
182
2 x 4 RE
4.61
54
37
12.4
251
2 x 6 RE
3.08
68
48
13.4
312
2 x 10 RE
1.83
90
66
15.4
445
2 x 16 RE
1.16
116
89
17
590
2 x 25 RM
0.727
132
105
19.5
1100
2 x 35 RM
0.524
159
129
24.4
1250
3 x 1.5 RE
12.1
27
19.5
10.4
167
3 x 2.5 RE
7.41
36
25
11.2
211
3 x 4 RE
4.61
46
34
13
295
3 x 6 RE
3.08
58
43
14.1
372
3 x 10 RE
1.83
78
59
16.2
543
3 x 16 RM
1.15
101
78
18.7
780
3 x 16 RE
1.15
101
78
18.2
754
3 x 25 RM
0.727
132
105
22.1
1151
3 x 25 + 16 RM/RE
0.727
132
105
23.2
1308
3 x 35 SM
0.524
159
129
24.3
1443
3 x 35 + 16 SM/RE
0.524
159
129
24.7
1514
3 x 50 SM
0.387
188
157
25.3
1660
3 x 50 + 25 SM/RM
0.387
188
157
28.1
1948
3 x 70 SM
0.268
232
199
28.1
2267
3 x 70 + 35 SM/RM
0.268
232
199
30.9
2642
3 x 95 SM
0.193
280
246
31.5
3069
3 x 95 + 50 SM/RM
0.193
280
246
36.4
3621
3 x 120 SM
0.153
318
285
34
3774
3 x 120 + 70 SM/RM
0.153
318
285
39.2
4525
3 x 150 SM
0.124
359
326
38
4665
3 x 150 + 70 SM/RM
0.124
359
326
43.9
5390
3 x 185 SM
0.0991
406
374
41.6
5775
3 x 185 + 95 SM/RM
0.0991
406
374
49.5
6860
3 x 240 SM
0.0754
473
445
47.2
7564
3 x 240 + 120 SM/RM
0.0754
473
445
55.1
8803
3 x 300 + 150 SM/RM
0.0601
535
510
61.8
11017
4 x 1.5 RE
12.1
27
19.5
11.1
194
4 x 2.5 RE
7.41
36
25
12.1
249
4 x 4 RE
4.61
46
34
14
351
4 x 6 RE
3.08
58
43
15.2
448
4 x 10 RE
1.83
78
59
17.6
662
4 x 10 RM
1.83
78
59
18.1
685
4 x 16 RE
1.15
101
78
19.8
929
4 x 16 RM
1.15
101
78
20.4
960
4 x 25 RM
0.727
132
105
24.5
1450
4 x 35 SM
0.524
159
129
24.3
1639
4 x 50 SM
0.387
188
157
28.1
2173
4 x 70 SM
0.268
232
199
30.9
2969
4 x 95 SM
0.193
280
246
36.4
4081
4 x 120 SM
0.153
318
285
39.2
5022
4 x 150 SM
0.124
359
326
43.9
6158
4 x 185 SM
0.0991
406
374
49.5
7733
4 x 240 SM
0.0754
473
445
55.1
10002
7 x 1.5 RE
12.1
16
12.5
13.2
291
12 x 1.5 RE
12.1
12
9.5
16.5
451
10 x 1.5 RE
12.1
13.5
10.5
16.1
412
14 x 1.5 RE
12.1
12
9.5
17.2
499
19 x 1.5 RE
12.1
11
9
18.9
623
24 x 1.5 RE
12.1
9.5
8
21.8
795
30 x 1.5 RE
12.1
8
7
22.9
918
37 x 1.5 RE
12.1
8
7
25
1106
40 x 1.5
12.1
8
7
25.9
1183
44 x 1.5 RE
12.1
7
6
27.9
1332
48 x 1.5 RE
12.1
7
6
28.3
1404
7 x 2.5 RE
7.41
21.5
17
14.4
379
10 x 2.5 RE
7.41
18
14.5
17.6
541
12 x 2.5 RE
7.41
16
13
18.1
599
14 x 2.5 RE
7.41
16
13
18.9
667
19 x 2.5 RE
7.41
14.5
11.5
20.8
843
24 x 2.5 RE
7.41
12.5
10.5
24.5
1103
30 x 2.5 RE
7.41
11
9
25.8
1283
37 x 2.5 RE
7.41
11
9
27.7
1521
40 x 2.5 RE
7.41
11
9
28.8
1630
48 x 2.5 RE
7.41
9
8
31.4
1941
7 x 4 RE
4.61
27.5
22
16.8
542
10 x 4 RE
4.61
23
18.5
20.9
784
12 x 4 RE
4.61
20.5
17
21.5
872
14 x 4 RE
4.61
20.5
17
22.6
975
19 x 4 RE
4.61
18.5
15.5
25.4
1267
24 x 4 RE
4.61
16
13.5
29.4
1629
30 x 4 RE
4.61
14
13.5
31.1
1904
37 x 4 RE
4.61
14
13.5
33.5
2269
7 x 6 RE
3.08
35
28
18.3
701
5 x 1.5 RE
12.1
19
19.5
12
224
5 x 2.5 RE
7.41
25
25
13
289
5 x 4 RE
4.61
32
34
15.2
412
5 x 6 RE
3.08
41
43
16.5
530
5 x 10 RE
1.83
55
59
19.2
795
5 x 10 RM
1.83
55
59
19.8
822
5 x 16 RE
1.15
71
78
21.7
1125
5 x 16 RM
1.15
71
78
22.3
1161
5 x 25 RM
0.727
132
105
26.9
1757
5 x 35 RM
0.524
159
123
29.3
2190
5 x 50 RM
0.387
188
157
29.4
2673
5 x 50 SM
0.387
188
157
30
2629
5 x 70 RM
0.268
232
199
34.8
3720
5 x 70 SM
0.268
232
199
32
3664
5 x 95 RM
0.193
280
246
38.6
5056
5 x 95 SM
0.193
280
246
40.8
4990
5 x 120 RM
0.153
318
285
43.3
6235
5 x 120 SM
0.153
318
285
40.1
6167
5 x 150 RM
0.124
359
326
54.4
7921
5 x 150 SM
0.124
359
326
48.3
7850
5 x 185 RM
0.0991
406
374
55.2
9682
5 x 185 SM
0.0991
406
374
54.1
9617
5 x 240 RM
0.0754
473
445
68
14172
5 x 240 SM
0.0754
473
445
68
14120
null
null
null
null
null
null

Technische Änderungen vorbehalten.

Alle Angaben sind daher ohne Gewähr.
